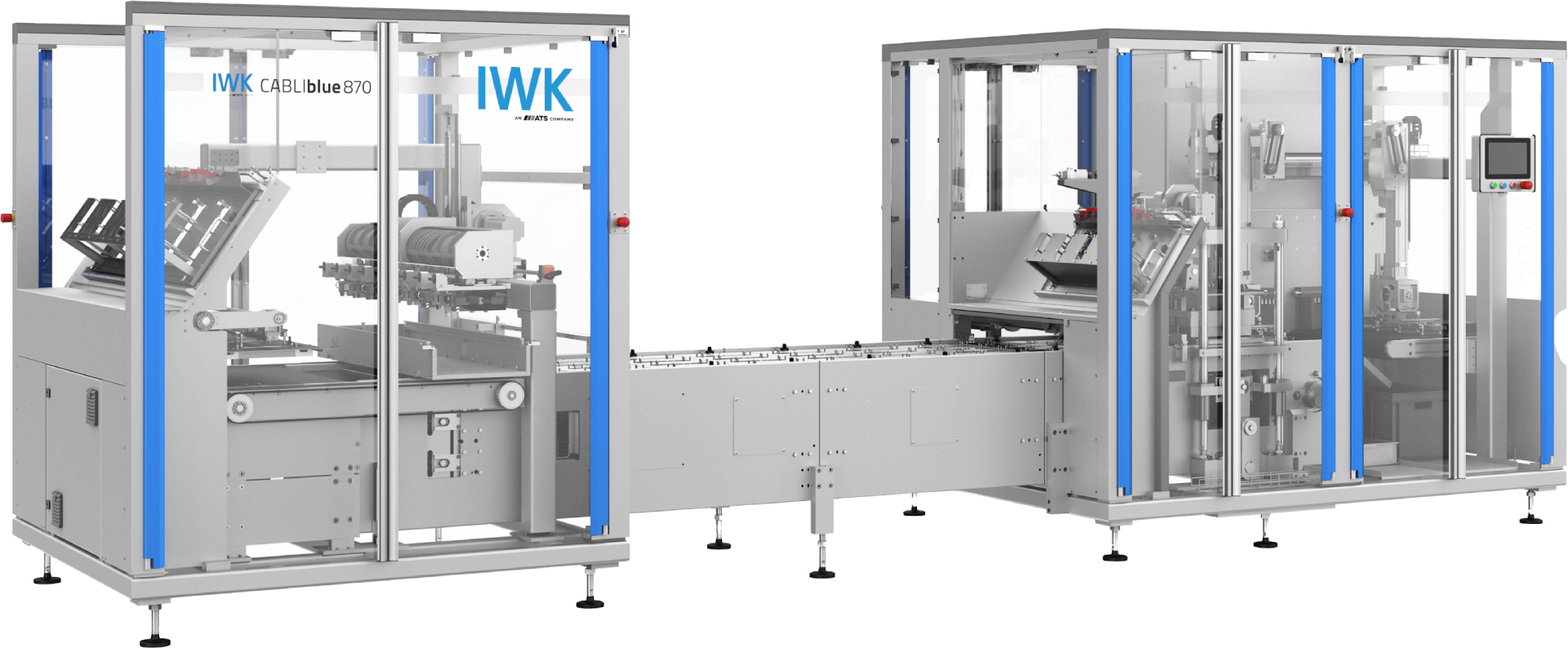

CABLIblue 870 - Card-to-card blister system
Card-to-card blister system

CABLIblue 870

Nature as a co-pilot! Sustainable packaging with solid cardboard blisters.

The card-to-card blister technology IWK CABLIblue 870 enables solutions for robust packaging made of solid board and meets the requirements for product protection. The modular packaging system produces high-quality technical blister packs with a high packaging capacity, for example for cosmetics, DIY items in DIY stores, medical technology and pharmaceuticals.

The IWK CABLIblue 870 is a modern blister system for the production of fully recyclable solid cardboard blisters based on card-to-card technology. The system is easy to operate and the stations are ergonomically easy to reach and equip.

The machine achieves up to 22 cycles per minute and supports the transition from plastic to fiber-based packaging for applications in pharmaceuticals, medical technology, cosmetics, personal care and non-food.

With this technological development, IWK is following the global mega-trend of fiber-based packaging and can significantly reduce the use of single-use plastic in this packaging segment, while at the same time securing markets for the future and strengthening product brands. Sustainable solid cardboard blisters made with CABLIblue 870 are 100% recyclable and use nature as a copilot! Cardboard is one of the most sustainable packaging materials, because the recycling cycle already works very well here.

Quick-change system for formats
Quick-change system for formats
The CABLIblue 870 enables completely tool-free format changes and quick fixation of the transport pallet by means of a clamping knob.
High flexibility through modules
High flexibility through modules
Thanks to modern bus technology, assembly and dismantling as well as later extensions can be implemented quickly, easily and without great effort.
Wear-free transport through segments
Wear-free transport through segments
The segmented transport is completely wear-free and is based on special segments These ensure precise positioning of the transport pallets under the workstations.

Applications

Products
Card-to-Card Blister
Blister length (mm)
70 – 260
Blister width (mm)
30 – 198
Blister depth (mm)
15 – 80
Seal area (mm)
260x610
Number of blisters in the seal area Standard
8
Number of blisters in the seal area Extended
12
Individual details
Up to 22 cycles per minute
