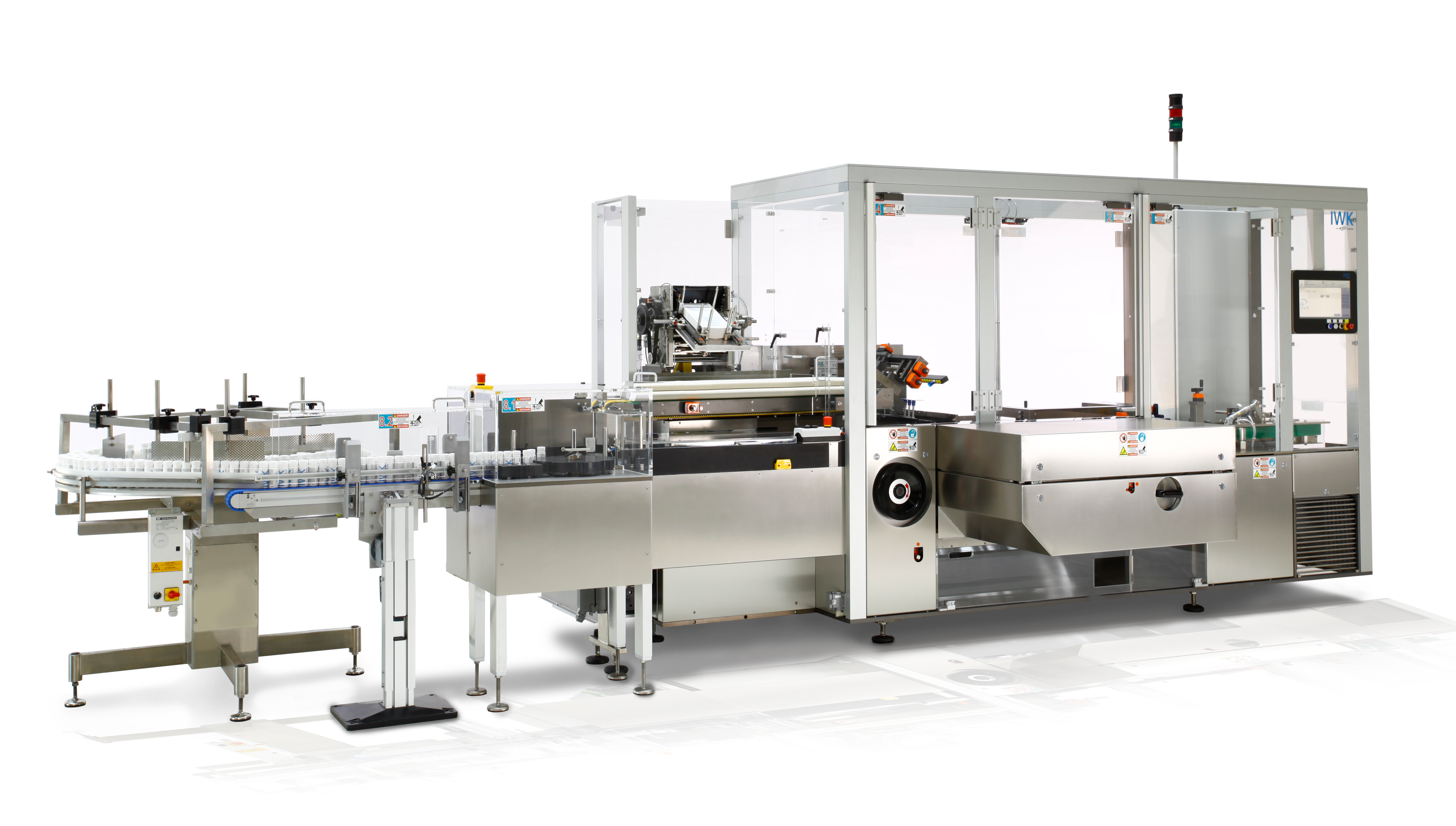

Horizontal cartoner HC5 (up to 200 fc/min.)

IWK HC5 – Compact horizontal cartoner for pharmaceuticals and cosmetics

The HC5 is a compact, continuously operating horizontal cartoner that has been specially developed for applications in the pharmaceutical and cosmetics industries in the output range of up to 200 folding cartons/min. The user-friendly machine concept enables optimum accessibility from all sides. As with all IWK machines, a fast format changeover is guaranteed.

This cartoning machine enables cost-effective packaging of tubes, bottles, blisters and other common applications. The modular design allows additional functions to be retrofitted and thus ensures easy adaptation to changing packaging processes.

Pros

Quiet belt main drive
Modern drive concept with separate servos at each transfer
Good accessibility and visibility of all stations through large panes/doors on all sides with additional accessibility from the back of the machine → better visibility and faster troubleshooting
Line clearance
Countersuckers on the folding carton cycloids for critical folding cartons
Short and narrow footprint
Small swivel ranges of the doors and the control cabinet
Small minimum B dimension with 15mm
Large folding carton support section on folding carton magazine 1000mm
Robust folding carton chain
Easy cleaning due to closed cover rail

Technical specifications

Max. output (cartons/min.) / (cycles/min.)

200

Working method

Continuous

Format Range - A/B/H (mm)

For 3 cardboard chains:
A: 20 – 105, W: 15 – 70, H: 55 – 180
For 4 cardboard chains:
A: 20 – 105, W: 15 – 70, H: 80 – 220

Applications

Automatic product feeders with tubes, blisters, viales, bottles, and much more. The products can be packaged in folding boxes with package inserts.
