Horizontal cartoner SC3 (up to 510 fc/min.) - Cartoner
Cartoner

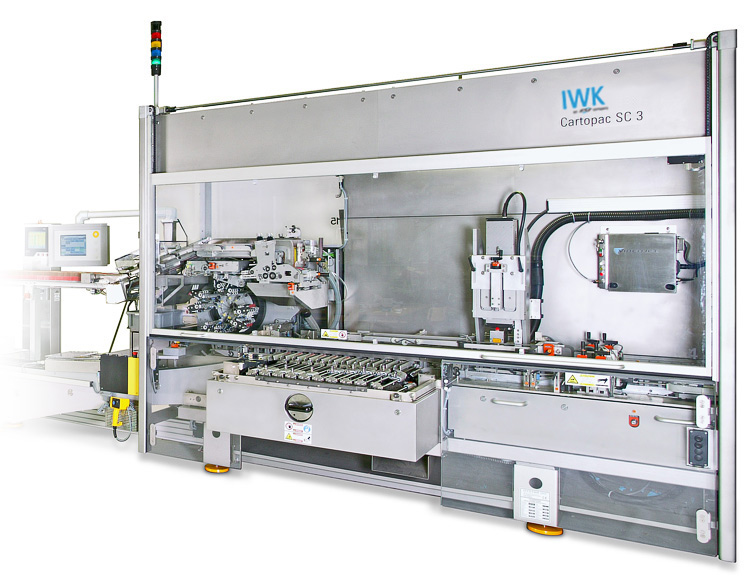

Horizontal cartoner SC3 (up to 510 fc/min.)

The IWK SC3 is an extra-robust horizontal high-performance cartoner for up to 510 folding cartons per minute and the ideal complement to an IWK high-performance tube filler of the FP series – especially for toothpaste production. Due to the lowered product chain, tubes are taken over safely and directly. Modern servo drive technology enables optimal adaptation of all processes, while the central touchscreen with 3D visualization offers maximum user-friendliness. The SC3 is fully designed for demanding pharmaceutical and cosmetic applications, including track and trace, product labeling, and SCADA integration.

Technical specifications

Max. output (cartons/min.) / (cycles/min.)
510
Working method
Continuous
Format Range - A/B/H (mm)
A: 25 – 55, B: 20 – 45, H: 105 – 230

Applications

Applications
Tubes, blisters, viales, ampoules, pouches, sachets, pouches, bottles, trays, spoons, cannulas
